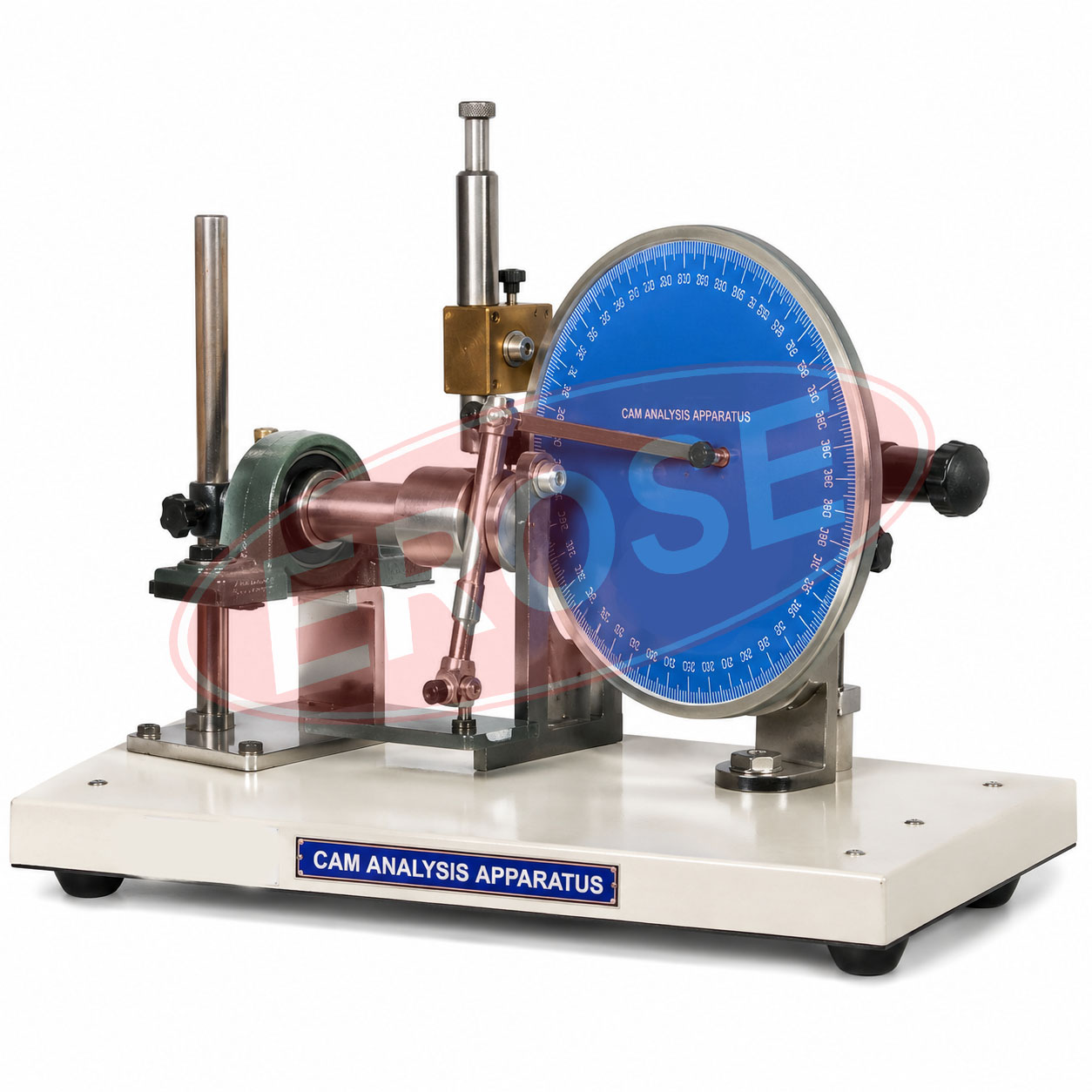

Cam Analysis Apparatus

Glass Agencies presents a cam analysis apparatus designed to provide students and technicians with practical understanding of cam mechanisms, follower motion, and displacement profiles in machinery. This apparatus features a precision-machined cam mounted on a rotating shaft, paired with interchangeable followers that demonstrate different types of motion such as oscillating, reciprocating, and translating. As the cam rotates, users can observe the resulting follower movement, analyze rise, dwell, and return periods, and understand how cam profile shapes influence mechanical motion. The system is equipped with a smooth rotation mechanism, allowing consistent speed for accurate observation and measurement. Adjustable controls enable users to vary rotational speed and loading conditions, simulating real-world operating scenarios and highlighting the effects of inertia and friction on follower behavior. Clear scales and reference markers provide precise readings of displacement, velocity, and acceleration, making it straightforward to connect theoretical calculations with practical outcomes. The apparatus’s rigid frame ensures proper alignment of the cam, shaft, and follower components, supporting reliable results throughout repeated experiments. Glass Agencies conducts careful inspection of each unit to verify accurate rotation, alignment, and smooth operation, ensuring dependable performance for classroom and laboratory use. The apparatus accommodates various cam profiles, such as circular, elliptical, and irregular, allowing comparative studies and deeper analysis of design principles. Maintenance is simple, with accessible bearings, shafts, and follower guides that facilitate cleaning and adjustment, extending the life of the unit. In mechanical engineering labs, vocational institutes, and technical training centers, the cam analysis apparatus supports hands-on learning in kinematics, machine design, and motion control. By choosing this cam analysis apparatus from Glass Agencies, users gain a practical tool that reinforces conceptual understanding, demonstrates the relationship between cam geometry and follower response, and provides a clear visual and measurable representation of mechanical motion, enabling learners to develop confidence in analyzing, designing, and interpreting cam-driven systems in industrial applications.
