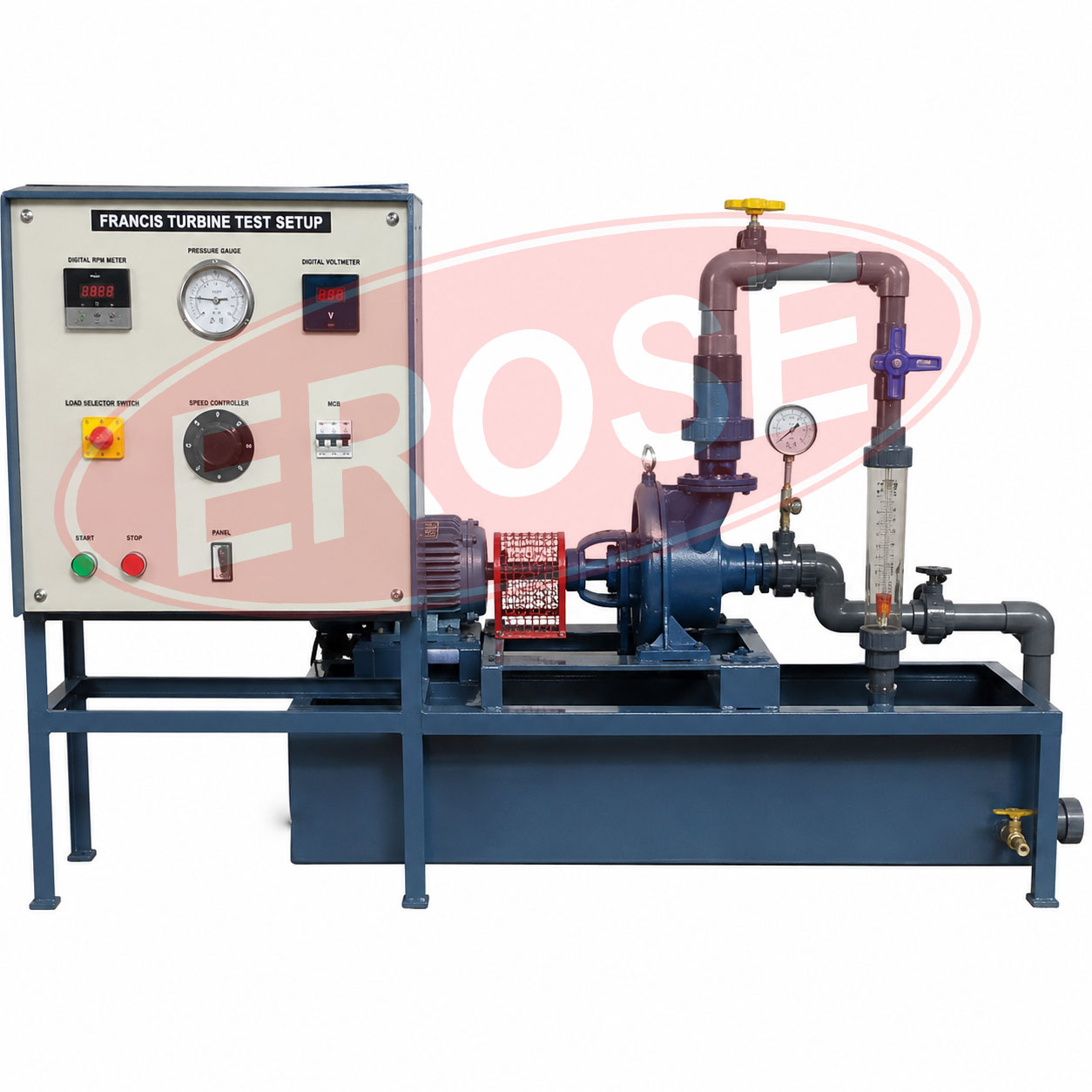

Francis Turbine Test Setup

Francis Turbine Test Setup by Glass Agencies is a laboratory apparatus designed to provide a practical understanding of the working principles and performance characteristics of the chemical reaction turbine, particularly the Francis turbine, significantly used in the medium for high-head hydroelectric purposes. The present apparatus enables learners to examine turbine performance, influence output, effectiveness, and influence current measurements and head variations on performance, bridge conceptual wisdom in fluid mechanics and energy conversion alongside hands-on experiments. The device, which is built with a strong metallic frame and a corrosion-resistant component, is designed to last for a long time and function safely in the laboratory. The company has a Francis turbine attached to a shaft for measuring a dynamometer or another generator for measuring a mechanical product. Water is supplied via a controlled inlet with a guide windvane direct movement into the turbine smuggler, mimicking the actual working conditions. The corrective Valve, the flowmeter, and the stress gauge allow the precise measurement of the discharge stream, the head, and the stress distribution during the tachometer and the virtual detector, which provides real-time monitoring of the turbine speed, torsion, and the authority output. The device is capable of conducting experiments such as plot turbine characteristic curve, measuring efficiency under changing motions and head positions, assessing the results of the cutter angle, and analyzing the association of water flow and energy transformation. To ensure reliable and safe laboratory operation, safety features include leak proof conduits, safe ascending components, and corrosion-resistant components. The Francis Turbine Test Facility is compact and ergonomically designed and is suitable for laboratory benches, classroom presentations, and exploration activities. Prior to dispatch, each individual unit of measurement is subject to stringent tests of operational accuracy, mechanical stability, and reproducibility. The current apparatus, which mirrors Glass Agency’s devotion to quality, accuracy, and enlightened growth, provides students and experts with a real world platform to investigate Francis turbine movement, energy transport, and applied hydroelectricity. The learner will acquire a complete understanding of the performance of the chemical reaction turbine, hydraulic ethics, and realistic elements of the Green Energy Coevals by imitating the operation of the turbine under controlled atmospheres.
