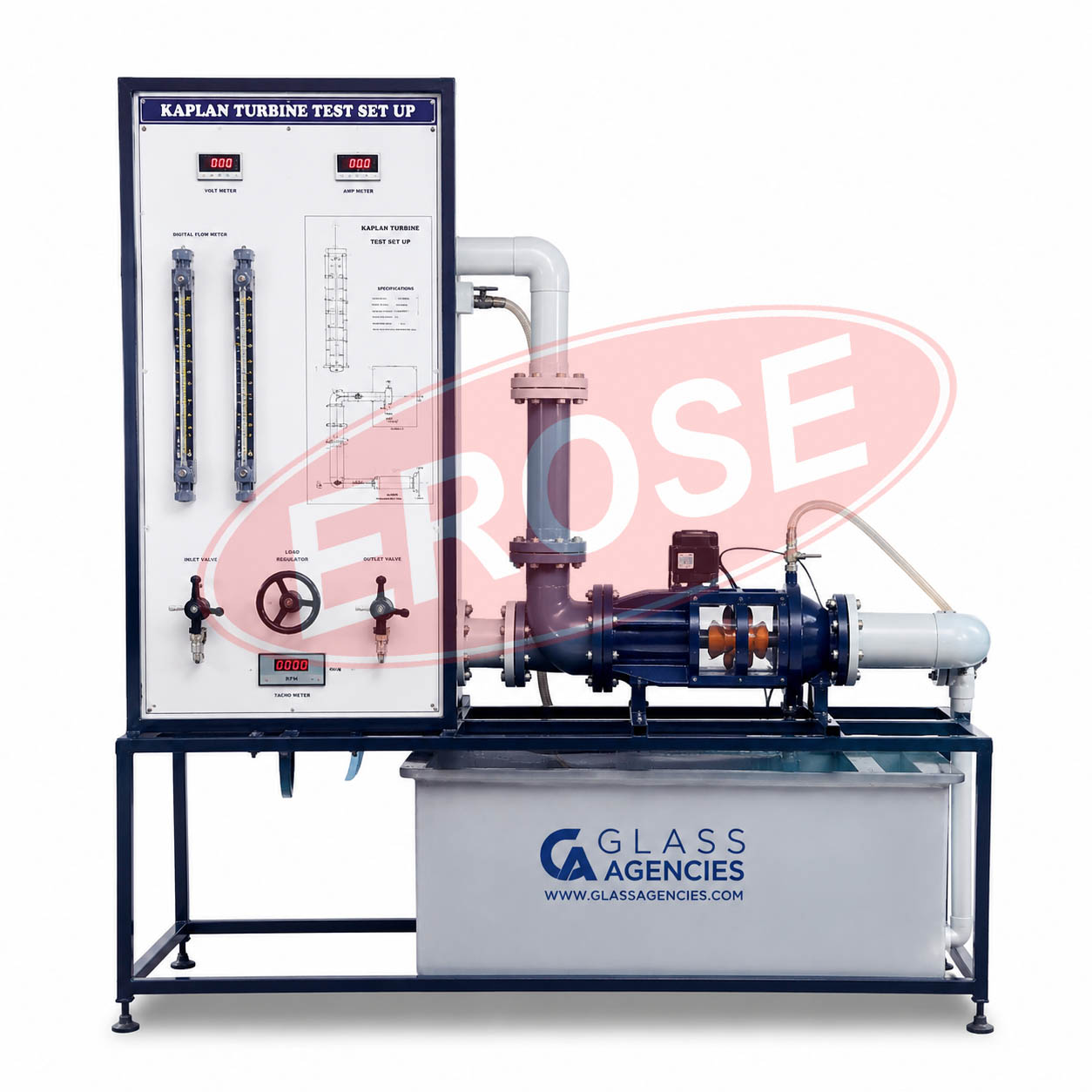

Kaplan Turbine Test Setup

Kaplan Turbine Test Setup by Glass Agencies is a laboratory device designed to show and analyze the performance characteristics of axial flow chemical reaction turbines, notably the Kaplan turbine, widely used in hydroelectric objectives. The current framework enables the student to investigate turbine characteristics, performance, influence final product, fluid movement, and provide sensible penetration into renewable energy conversion and hydraulic machine values. The device, which is made of a robust metallic frame and a corrosion-resistant component, ensures a long service life and safety under laboratory conditions. To measure the mechanical output of the apparatus, the apparatus comprises a Kaplan turbine and an adjusting blade on the shaft which is connected to the dynamometer or generator. Water may be supplied from a monitored tank or reservoir via a nozzle and a usher windvane, a direct stream into the turbine smuggler. A precise measurement of current rate, head and strain level is ensured by a control valve, calibrated streammeter, and strain gauge located at an inlet and a mercantile establishment. The tachometer, or a computerized detector, monitors the rotational speed of the turbine, allowing students to calculate torsion, authority, and performance. The apparatus facilitates experiments such as plotting turbine characteristic curves, evaluating blade angle results, analyzing performance under changing current conditions, and revealing the linkage of the head, stream, and authority output. In order to ensure safe and reliable operation, safety measures include leakproof conduits, protected climbs of turbine components, and corrosion-resistant materials. The Kaplan Turbine Test Setup is easy to use and comfortable, making it suitable for laboratory use, classroom presentation, and exploration purposes. Before shipment, each individual unit of measurement is subject to rigorous testing of active accuracy, mechanical stability, and reproducibility. Mirroring Glass Agencies’ devotion to quality, accuracy, and informational breakthrough, the current apparatus provides students and scholars with a hands-on platform to study the interaction of axial flow turbines, energy conversion principles, and pragmatic hydroelectric intentions. It enhances the understanding of turbine design, fluid mechanics, and performance optimization in renewable energy and hydraulic technology surveys by imitating real world operating conditions in a controlled environment.
