Pelton Wheel Turbine Model

Pelton Wheel Turbine Model

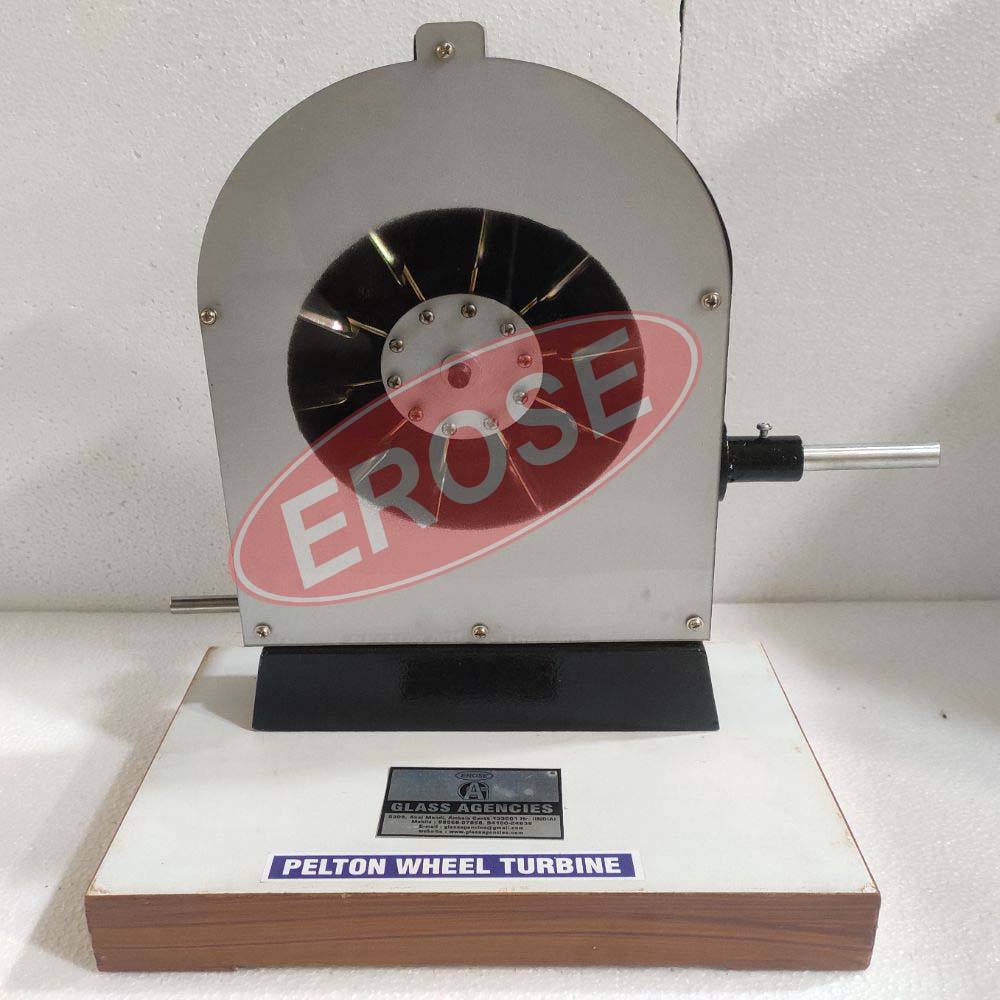

The Pelton Wheel Turbine Model from Glass Agencies under the EROSE brand is an educational hydraulic turbine model developed to demonstrate the working principle and operation of an impulse water turbine. It is suitable for engineering colleges, polytechnic institutes, universities, technical laboratories, hydraulic machinery laboratories, and educational institutions. This model provides students with a practical understanding of how water energy can be converted into mechanical energy through the action of a high-speed water jet.

The Pelton Wheel Turbine Model operates on the principle of impulse force. Water is supplied through a nozzle, which converts the available water pressure into a high-velocity jet. The water jet strikes the specially shaped buckets fitted around the Pelton wheel runner. As the water changes direction while passing over the buckets, an impulse force is generated, causing the runner to rotate. This working arrangement helps students observe the relationship between water flow, jet velocity, impulse force, and turbine rotation.

The model is useful for demonstrating various concepts related to hydraulic turbines, fluid mechanics, hydraulic energy conversion, turbine runners, water jets, nozzle operation, bucket design, and mechanical power generation. It can be used during laboratory demonstrations, practical classes, engineering experiments, student projects, technical training sessions, and academic presentations.

With its visible turbine mechanism, the model makes it easier for students to understand the basic construction and operating principle of a Pelton turbine. It can support practical teaching for subjects such as Mechanical Engineering, Civil Engineering, Fluid Mechanics, Hydraulic Machines, and Renewable Energy Engineering.

Glass Agencies is a manufacturer and supplier of educational laboratory instruments, scientific equipment, engineering models, and hydraulic machinery laboratory equipment under the EROSE brand. The Pelton Wheel Turbine Model is a useful teaching aid for institutions looking to provide practical exposure to hydraulic turbine technology.

For product specifications, technical details, quotation, availability, and bulk requirements of the Pelton Wheel Turbine Model, customers can contact Glass Agencies. The company supplies a range of educational and laboratory equipment for engineering colleges, universities, technical institutes, laboratories, and training centers.
